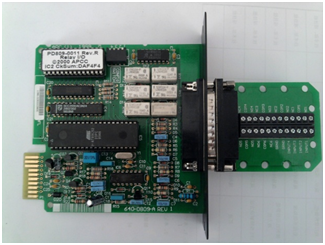

智能UPS继电器IO卡
继电器小常识：型号中A（a）代表常开，B代表常闭，无代表转换；
汽车继电器脚编号，85和86为线圈脚，施加控制电压（比如12VDC）可闭合或断开， 87为常开脚，87a为常闭脚，30为轭铁脚. 请根据如上提示参考接线图，以免出错降低工作效率
●产品特点：大容量，可切换80安培电流；可提供标准触点形式有：1组常开，1组常闭，1组转换,。
●工作温度为：-40 to+125℃
●产品用途：汽车控制装置
●外型尺寸长*宽*高（mm）：28.0*28.0*25.0
●触点形式：1a,1b,1c
●触点容量：1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC
●线圈电压：6VDC,9VDC,12VDC,24VDC,48VDC,36VDC,72VDC
承接各种电子产品开发生产，欢迎来电咨询！
Intelligent UPS relay IO card
Common sense of relay: A (a) stands for normal opening, B stands for normal closing, and no representative of conversion.
Automotive relay foot number, 85 and 86 are coil foot, applying control voltage (such as 12VDC) can be closed or disconnected, 87 are normally open foot, 87A are normally closed foot, 30 are yoke foot. Please refer to wiring diagram according to the above tips in order to avoid mistakes and reduce work efficiency.
Product features: large capacity, can switch 80 amperes of current; can provide standard contact form: 1 group open, 1 group closed, 1 group conversion.
The working temperature is -40 to+125 C.
Product Usage: Automotive Control Device
Outward Size Length * Width * Height (mm): 28.0 * 28.0 * 25.0
Contact form: 1a, 1b, 1C
Contact capacity: 1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC
Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC
